- Floorplan - 2016 CrossRoads RV Elevation Las Vegas
- SALE PRICE: $54,999
- List Price: $84,750
- DISCOVER DISCOUNT: $29,751
-
Sleeps 8
-
4 Slides
-
Bath and a HalfTwo Entry/Exit Doors
-
46ft Long
-
14,848 lbs

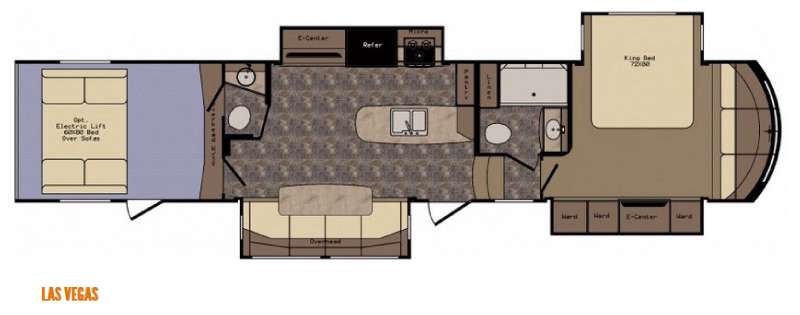

Las Vegas Floorplan
Specifications
Sleeps | 8 | Slides | 4 |
Length | 45 ft 6 in | Ext Width | 8 ft 6 in |
Ext Height | 13 ft 2 in | Int Height | 8 ft |
Hitch Weight | 3770 lbs | GVWR | 18000 lbs |
Dry Weight | 14848 lbs | Cargo Capacity | 3152 lbs |
Fresh Water Capacity | 92 gals | Grey Water Capacity | 68 gals |
Black Water Capacity | 68 gals | Tire Size | ST235/80R16E |
Furnace BTU | 40000 btu | VIN | 4V0FC3830GG007037 |
Description
As you step into the Elevation Las Vegas toy hauler fifth wheel by CrossRoads RV, you will be wowed by all of the space that is offered from the quad slides to the rear cargo area.
Starting in the rear, there is easy loading and unloading your off road toys with the large cargo area. You can also choose an optional electric lift with a bed on top and dual sofas on bottom. There is also a convenient half bath off of the cargo area.
In the main living area you will find a sofa slide on one side of the fifth wheel. The other side offers a slide with a TV, double door refrigerator, three burner range, and microwave. You will find a peninsula counter with extra counter space and a double kitchen sink. The pantry provides added storage space in the kitchen.
Stepping up the stairs, the bathroom is on the left. Inside the bathroom you will find a toilet, linen cabinet, shower, and sink.
The front bedroom greets you with a king bed slide. The opposite side also has a slide with a three wardrobes and an entertainment center. Along the front of the room find seating, an overhead cabinet, and more!
Features
- Solid surface tops in kitchen and main bath
- Frameless tinted safety glass windows
- Bluetooth surround sound bar
- Blu-Ray player
- Blackout roller night shades
- 15K ducted AC
- 40K BTU furnace
- Polartec foil insulation package
- LED interior lights
- 30” Residential microwave
- 19.7 gal/hr quick recovery G/E DSI water heater (10 gal)
- Trail Aire Rota-Flex pin box
- Dual 40# LP bottles
- Secure Seal heated and enclosed underbelly
- 16” custom aluminum wheels
Peak Performance Package (Mandatory)
- 5.5 Onan generator w/30 gal fuel tank
- Fueling station with exterior tank gage and power
- Rear electric queen Happijac bed with rollover sofas
- 2nd power awning w/LED strip
- 32” LED TV in bedroom
- Garage pull down screen
- Dyson cordless vac
- Level-Up 6-point hydraulic leveling
- 12 cu. ft. G/E refrigerator
- I-Cool memory foam mattress
- LED TV in main living area
Interior
- Garage AM/FM/MP3 stereo w/Bluetooth
- (2) garage speakers
- Garage TV bracket w/cable & sat prep
- W/D prep
- 22” Diamond tread plate protection
- Aluminum RAM air vents in garage
- Black snap window covers w/storage in garage
- Tuff ply garage flooring
- 8’ Ceiling in main living area
- Max fan w/ rain sensor in main living room
- Foldable in/out dinette table
- Luxurious styled reclining sofas with drink holders
- Stainless steel ball bearing drawer guides
- Porcelain foot flush toilet
- Fireplace with remote
- Large stainless steel residential kitchen sink
- High rise commercial grade kitchen faucet w/pull-down sprayer
- Raised panel cabinet doors throughout
- LP & carbon monoxide detectors, and smoke alarms
- Crown molding throughout
- USB charging station
- Power exhaust fans in bedroom, bathroom and garage
Exterior
- Rear flood / loading lights
- 8’ rear ramp door
- Quad-Step entry steps at both doors
- 30” entry door(s)
- Convenience docking station
- Roof mounted satellite prep
- LED docking hitch light
- Fold away grab handles at both entry doors
- Auxiliary 30 gal fuel tank
- Spare tire with carrier
- 50 amp detachable power cord
- Fold flat roof access ladder
- Slam latch baggage doors
- (2) LED exterior scare lights
- Exterior TV & satellite hook-ups
- Water heater by-pass valve
- Black tank flush
- (2) marine grade exterior speakers
Construction
- 3/8” roof decking
- 5/8” floor decking
- High pressure hot melt laminated sidewalls
- Total Truss roof system
- Spring assist rear ramp
- 5-sided Aluma frame construction
- Radius roof line
- Wired and prepped for 2nd and 3rd AC
- 7000# rated Superlube axles
- Trail Aire Equa Flex suspension
- Galvanized wheel wells
- E rated radial tires
- Super-Stor basement storage
- Dura-Cam I beam frame
- Front hydraulic landing gear
- Rear electric stabilizer jacks
- 1200# rated frame mounted D-rings in garage
Polartech Insulation Package Components
- Sidewall - Block foam insulation + double layer lauan
- Roof - Wood rafters + R-14 spun insulation + R-15 radiant foil
- Floor system - R-14 spun insulation + R-15 radiant foil + ABS enclosure
- Front wall - R-7 spun insulation + R-15 radiant foil
- Slide floor - R-15 radiant foil insulation
- Slide end walls - R-7 spun insulation + R-15 radiant foil
- Bedroom deck - R-7 spun insulation + R-15 radiant foil
- Above open pin box - R-15 radiant foil
- Gate valves - Enclosed and heated
- Underbelly - Forced heat to tanks
- 40,000 BTU Furnace - Largest in its class
- Dual 40# LP bottles
Total Truss Roof System Components
- 50% stronger than competitive roof designs
- 4 1/2” crowned wood truss 16” on-center
- 2”x2” vertical wood stud supports to maximize load capacity
- Oversized nail plates for greater stability
- 3/8” roof decking (secured in place with screws)
- Radius roof edge
- Fully walk able
Options
- Full paint (select color)
- Gen 2.0 patio deck w/power awning
- 3 season door in garage ILO pull down screen
- DS sofa slide power awning (NA Richmond, Speedway, Grand Prix, Talladega)
- 2nd A/C in bedroom (15K)
- 3rd A/C in garage (15K)
- 32” LED TV in garage
- 18 cu. ft. refrigerator w/ 1000W inverter
- Polar Package (dual pane windows, 12V heat pads, heat pump on main AC)
- Trail Air Tri-Glide pin box
- Décor (Dusk, Twilight, Lunar)
See us for a complete list of features and available options.
